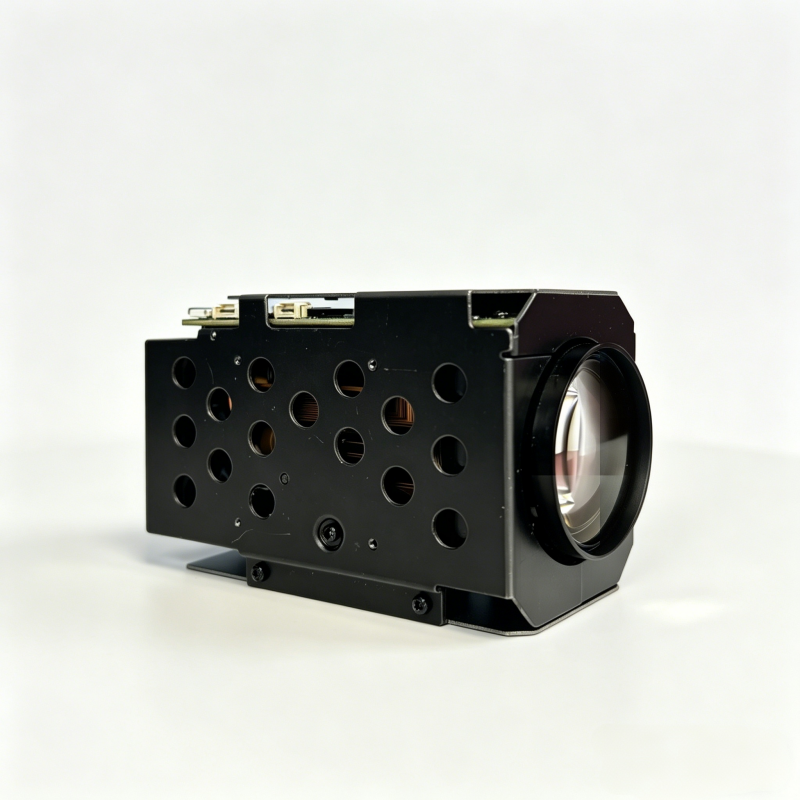

SOAR-CBH2130

2MP 30x Optical Zoom Camera Module

The SOAR-CB Series visible light camera modules are engineered for seamless integration into advanced imaging systems where performance, reliability, and flexibility are critical.
Built around high-sensitivity sensors and precision optical zoom assemblies, these modules deliver clear, stable imagery across a wide range of operating environments—from low-light conditions to high-contrast scenes.

Designed with system integration in mind, support is provided for multiple video interfaces along with extensive customization options, including lens configuration, control protocols, and image processing parameters. Applications span UAV payloads, PTZ platforms, and fixed surveillance systems, ensuring consistent imaging performance and long-term operational stability.

Scalable OEM/ODM support enables streamlined development cycles and efficient system integration, supporting faster deployment of high-performance vision solutions.

Contact Now Download

Product Detail

Parameter

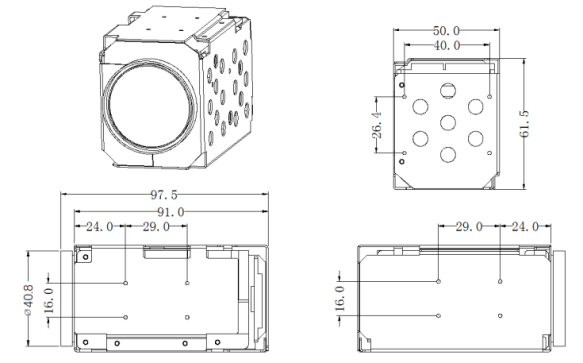

Dimension

Product Tags

• 2MP Ultra Starlight Autofocus-Zoom Camera Module

• Output: LVDS / MIPI (Optional), Ethernet (10M/100M)

• Video formats: 1920×1080 @ 25/30fps, 1280×960, 1280×720

• 1/2.8" 2MP Progressive Scan CMOS sensor

• 30x Optical Zoom (5.1~153mm) & 16x Digital Zoom

• Ultra starlight: Color 0.0005Lux / B/W 0.0001Lux @ F1.67 (AGC ON)

• Compact: 95.3 × 50 × 61.5mm, 257g

• VISCA (TTL 3.3V), PELCO-D/P (RS485), ONVIF Profile S/G

• WDR, EIS, Optical Defog

• Auto Day/Night ICR filter, 3D Noise Reduction

• Smart analytics: Motion detection, Area intrusion, Cross-border, Wandering, Crowd gathering, Fast movement, Audio anomaly

• Audio I/O, Alarm I/O, USB 2.0

• Scalable OEM/ODM support

The SOAR-CBH2130 2MP 30X Starlight Zoom Camera Module delivers exceptional low-light performance in a compact form factor ideal for UAV payloads, PTZ platforms, and fixed surveillance systems.
Fitted with a 1/2.8" 2MP Progressive Scan CMOS sensor, it captures 1920×1080 @ 25/30fps real-time video with 0.0005Lux color / 0.0001Lux B/W minimum illumination at F1.67 — enabling clear imaging in near-total darkness. The 5.1~153mm 30x optical zoom lens (F1.67~F3.67) provides a horizontal viewing angle from 55.27° (wide) to 2.66° (tele), with zoom transition in approximately 4 seconds. The 16x digital zoom extends total magnification to 480x. Advanced imaging features include Real-time Wide Dynamic Range (WDR) for high-contrast scenes, Electronic Image Stabilization (EIS) for vibration-prone environments, 3D Noise Reduction (3D DNR) for clean low-light imagery, Optical Defog for adverse weather conditions, and ICR day/night switching with multiple trigger modes. Video outputs include LVDS / MIPI (optional) and Ethernet (10M/100M).

Control via VISCA (TTL 3.3V), PELCO-D/P (RS485), and ONVIF Profile S/G ensures broad VMS compatibility. H.265 / H.264 dual compression with 32Kbps~16Mbps bitrate. Smart analytics, audio I/O, alarm I/O, USB 2.0, and Micro SD storage up to 256GB / NAS provide comprehensive integration. Operating from -30°C to +60°C on DC 12V ±10% (2.5W typical / 4.3W max), the SOAR-CBH2130 measures 95.3 × 50 × 61.5mm and weighs 257g. Scalable OEM/ODM support enables customization.

Model	SOAR-CBH2130	SOAR-CBH2130D	SOAR-CBH2130M
Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	1920 × 1080
Min. Illumination	Color: 0.0005Lux @ (F1.67, AGC ON); B/W: 0.0001Lux @ (F1.67, AGC ON)
Shutter Speed	1/25s to 1/100,000s
Day & Night	IR cut filter
Zoom	30x optical, 16x digital
Slow Shutter	Yes
Lens
Focal Length	5.1mm to 153mm
FOV	Horizontal field of view: 55.27° to 2.66° (wide-tele), Vertical field of view: 32.26° to 1.51° (wide-tele) Diagonal field of view: 63.99° to 3.06° (wide-tele)
Focus	Auto, semi-auto, manual
Aperture	F1.67 to F3.67
Minimum Working Distance	100mm-1500mm (wide-tele)
Zoom Speed	Approx. 4s (optical, wide-tele)
Video
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream	50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 288)
Third Stream	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Video Compression	H.265 / H.264
Video Bit Rate	32Kbps to 16Mbps
Audio
Audio Compression	G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
Network
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
API	ONVIF (Profile S, Profile G), SDK
Web Browser	Internet Explorer, Chrome, Edge
Image Settings	Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browse
BLC	Yes
Exposure Mode	AE / Aperture Priority / Shutter Priority / Manual Exposure
Focus Mode	Auto Focus / One Focus / Manual Focus / Semi-Auto Focus
Area Exposure / Focus	Yes
Defog	Yes
Image Stabilization	EIS
Day/Night Switch	Automatic, manual, timing, alarm trigger
3D Noise Reduction	Yes
Picture Overlay Switch	Support BMP 24-bit image overlay, customizable area
Region of Interest	Support three streams and four fixed areas
Interface
External Interface	36pin FFC (Network port, RS485, RS232, SDHC, Alarm In/Out, Line In/Out, power), USB2.0
On-board Storage	Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support)
Digital Interface	N/A	LVDS	MIPI
Event
Basic Event	Motion detection, video blocking, disk detection, illegal access
Smart Function	Area intrusion, cross-border detection, leaving the area, wandering detection, crowd gathering, fast movement, audio anomaly
General
Power	DC12V±10%
Power Consumption	2.3W MAX (ICR, 4.3W MAX)
Operating Temperature	-30°C to +60°C
Operating Humidity	≤95% (non-condensing)
Dimension	93.1mm × 50.3mm × 55mm
Weight	Approx. 234g
