Description:
SOAR970-2133LS5 series Vehicle Laser IR HD PTZ Camera is a durable and portable camera with pan, tilt, and zoom capabilities, making it a versatile solution for a wide range of mobile applications. Starlight HD 2MP/4MP, 33x optical zoom Image sensor, which delivers exceptional performance in low-light conditions, high contrast scenes, and reliable Laser Infrared Night vision.
The standard model of the camera is an IP-based camera that offers a range of features, including H.265 and H.264 compression methods, Video Analytics, and stand-alone operation with built-in recording. Users can operate the camera via a well-designed web interface , onvif tool, VMS software. The device is designed to handle DC voltage input and rugged mobile environments, making it suitable for use in a variety of vehicles, from cars, trucks, and vans to SWAT Trucks, Fire Trucks, Command Vehicles, and so on.
Features:
- 1920×1080(optional 4MP) Progressive Scan CMOS , Day/Night monitoring
- 33X Optical zoom, 5.5~180mm
- Laser illuminator for Night Vision, up to 800m IR distance
- 360 ° endless rotation
- Ip67 Design
- Operation Temperatures Ranging from −40℃ to +65℃
- Optional damper absorber
- Optional dual-sensor version, to be integrated with thermal camera
| Model No. | SOAR970-2133LS5 |
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels; |
| Minimum Illumination | Color: 0.001Lux@F1.5; W/B: 0.0005Lux@F1.5 (IR on) |
| Lens | |
| Focal Length | Focal Length 5.5mm~180mm |
| Optical Zoom | Optical Zoom 33x, 16x digital zoom |
| Video | |
| Compression | H.265/H.264 / MJPEG |
| Streaming | 3 Streams |
| BLC | BLC / HLC / WDR(120dB) |
| White Balance | Auto,ATW,Indoor,Outdoor,Manual |
| Gain Control | Auto / Manual |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Interoperability | ONVIF , PSIA, CGI |
| Web Viewer | IE10/Google/Firefox/Safari… |
| PTZ | |
| Pan Range | 360° endless |
| Pan Speed | 0.05°~80° /s |
| Tilt Range | -25°~90° |
| Tilt Speed | 0.5°~60°/s |
| Number of Preset | 255 |
| Patrol | 6 patrols, up to 18 presets per patrol |
| Pattern | 4 , with the total recording time not less than 10 mins |
| Power loss recovery | Support |
| Infrared | |
| IR distance | 500m |
| IR intensity | Automatically adjusted, depending on the zoom ratio |
| General | |
| Power | DC 12~24V,40W(Max) |
| Working temperature | -40℃~60℃ |
| Humidity | 90% or less |
| Protection level | Ip67, TVS 4000V Lightning protection, surge protection |
| Wiper | Optional |
| Mount option | Vehicle mouting, Ceiling/tripod Mounting |

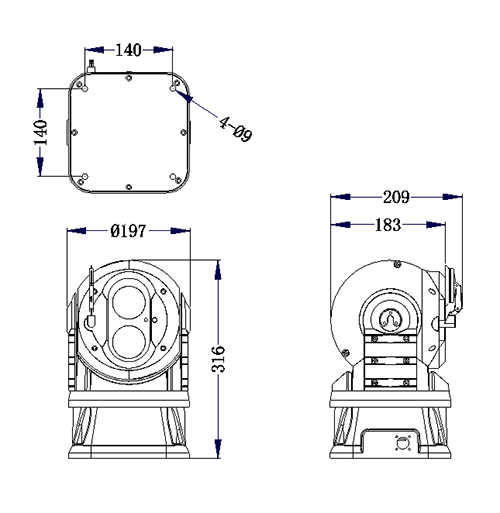

| Dimension | / |
| Weight | 6.5kg |
-
