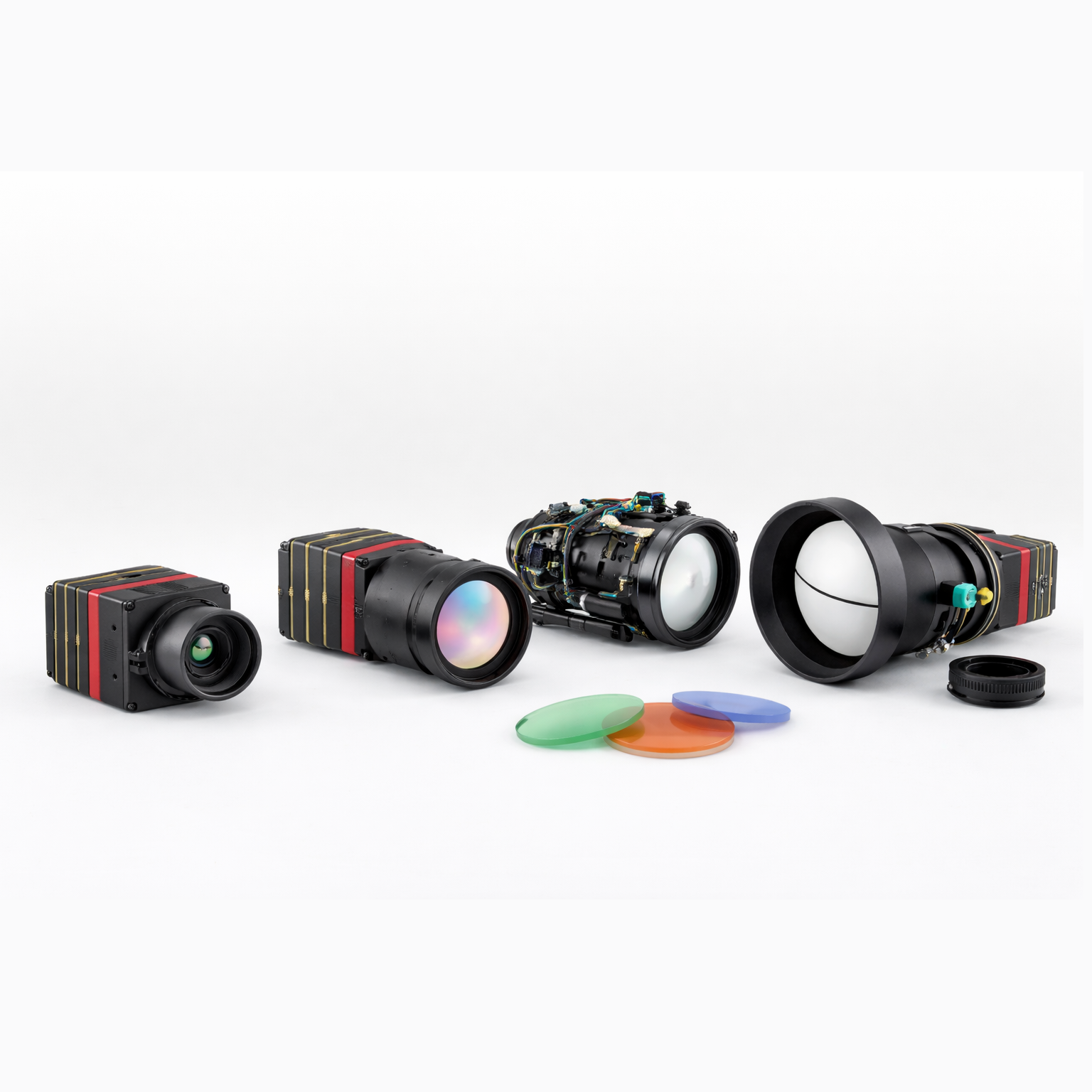

Uncooled Long-wave Thermal Imaging Module

Key Features & Advantages

• VOx Uncooled Infrared Detector — Delivers reliable imaging without the need for cryogenic cooling, reducing size, weight, and power (SWaP) for embedded systems.

• High Resolution Options — Available in 640×512 or 384×288 pixel versions, providing flexibility for different application needs.

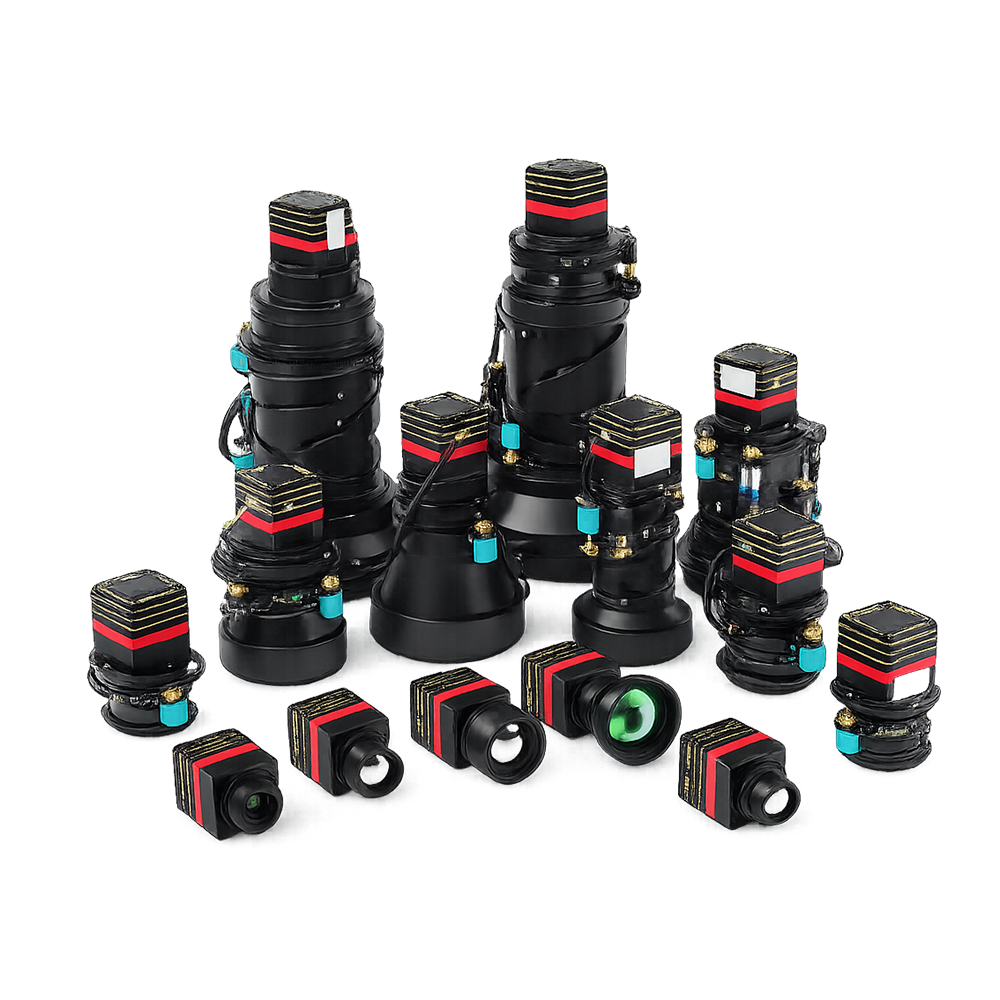

• Zoom Lens Variants — Supports multiple lenses such as 20–100 mm continuous zoom, 15–75 mm, 30–150 mm, and more, enabling both wide-area detection and high-magnification tasks.

• Excellent Thermal Sensitivity — NETD ≤ 35 mK @ F1.0, 300 K (for 20–100 mm lens), allowing for detailed thermal contrast even in low-contrast scenes.

• Versatile Interface Support — Offers LVCMOS, BT.656, BT.1120, LVDS, analog video outputs and is designed for fast integration with mainstream security and embedded platforms.

• Robust Connectivity & Alarm Features — Supports RS-232 / RS-485 serial communication, 1 audio in/out, 1 alarm input/output, and Micro SD storage (up to 256 GB).

• Durable & Weatherproof Design — Front lens is IP67 rated, ensuring reliability in harsh outdoor or marine environments.

• Flexible Application Scenarios — Perfect for rail security, border patrol, urban surveillance, mobile security, forest fire detection, and more.

• SDK & Network Support — Compatible with ONVIF, and provides adjustment for brightness, contrast, palettes, NUC (non-uniformity correction), image enhancement, and false-color modes.

Global Supply & OEM Customization — As a mature thermal imaging module manufacturer, Hzsoar supports large-scale OEM integration and flexible customization.
