SOAR971 series

Vehicle mounted IP PTZ Camera

SOAR971  series mobile PTZ is designed for rough condition and mobile applications.

This rugged,all waterproof PTZ Camera is completely water proof to  IP66 standards and has an internal Heater that allow

this PTZ Camera to work under the condition of temperatures down to -40° C.

With compact design and light weighs , the PTZ is a ideal choice for marine and vehicle rapid deployment for vehicle, marine and military application around the world .



Product Detail

Parameter

Dimension

Product Tags

Description:

SOAR971  series mobile PTZ is designed for rough condition and mobile applications.

This rugged,all waterproof PTZ Camera is completely water proof to  IP66 standards and has an internal Heater that allow

this PTZ Camera to work under the condition of temperatures down to -40° C.

With compact design and light weighs , the PTZ is a ideal choice for marine and vehicle rapid deployment for vehicle, marine and military application around the world.

Features:

  • 1920×1080 Progressive Scan CMOS, Day/Night monitoring
  • 33X Optical zoom, 5.5~180mm
  • IR LED Illumination for Night Vision, 50m IR distance
  • 360° (endless)
  • Ip66 Design
  • Operation Temperatures Ranging from -40° to +60°C
  • Optional Magnetic Mount
  • Optional damper absorber
  • Optional dual-sensor version, to be integrated with thermal camera

  • Previous:
  • Next:

  • Model No.SOAR971-2133
    Camera
    Image Sensor1/2.8” Progressive Scan CMOS
    Effective Pixels1920(H) x 1080(V), 2 Megapixels;
    Minimum IlluminationColor: 0.001Lux@F1.5; W/B: 0.0005Lux@F1.5 (IR on)
    Lens
    Focal LengthFocal Length 5.5mm~180mm
    Optical ZoomOptical Zoom 33x, 16x digital zoom
    Aperture Range F1.5-F4.0
    Field of ViewH: 60.5-2.3°(Wide-Tele)
    V: 35.1-1.3°(Wide-Tele)
    Working Distance100-1500mm(Wide-Tele)
    Zoom SpeedApprox. 3.5 s (optical lens, wide-tele)
    Video
    CompressionH.265/H.264 / MJPEG
    Streaming3 Streams
    BLCBLC / HLC / WDR(120dB)
    White BalanceAuto,ATW,Indoor,Outdoor,Manual
    Gain ControlAuto / Manual
    Network
    EthernetRJ-45 (10/100Base-T)
    InteroperabilityONVIF , PSIA, CGI
    Web ViewerIE10/Google/Firefox/Safari…
    PTZ
    Pan Range360° endless
    Pan Speed0.05°~80° /s
    Tilt Range-25°~90°
    Tilt Speed0.5°~60°/s
    Number of Preset255
    Patrol6 patrols, up to 18 presets per patrol
    Pattern4 , with the total recording time not less than 10 mins
    Power loss recoverySupport
    Infrared
    IR distanceUp to 50m
    IR intensityAutomatically adjusted, depending on the zoom ratio
    General
    PowerDC 12~24V,36W(Max)
    Working temperature-40℃~60℃
    Humidity90% or less
    Protection levelIp66, TVS 4000V Lightning protection, surge protection
    Mount optionVehicle mouting, Ceiling/tripod Mounting
    Weight3.5kg

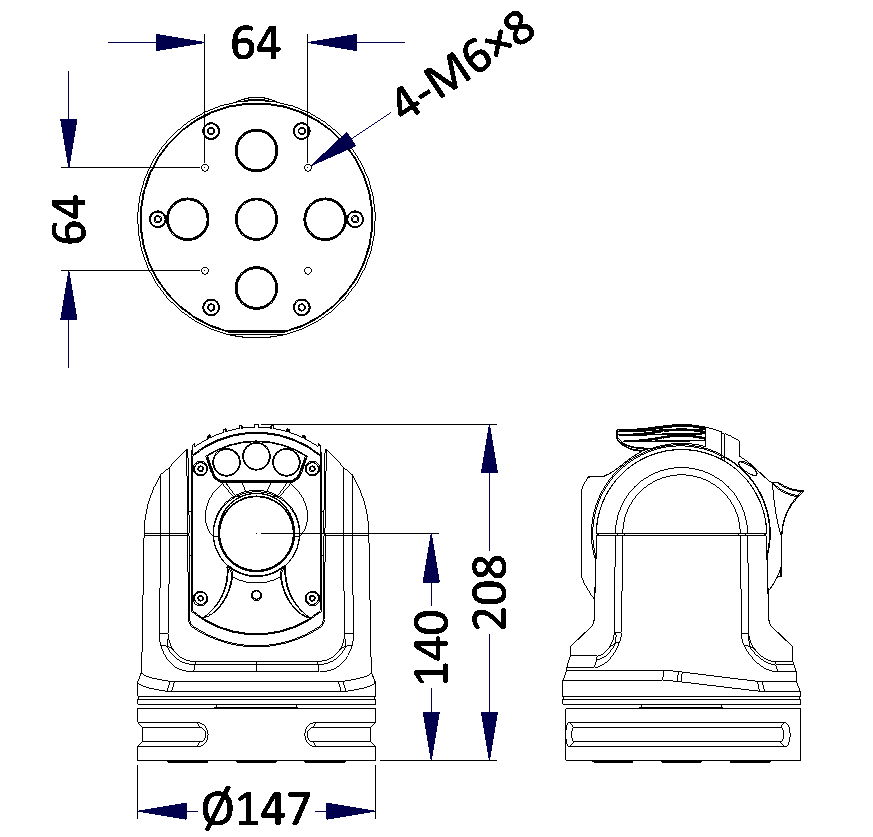

    Dimension/

    971单光
