SOAR977-TH655A92R6

LRF Long Range Thermal Marine PTZ Camera

SOAR977-TH655A92R6

LRF Long Range Thermal Marine PTZ Camera

The Dual-Spectral Gyro-Stabilized Intelligent Maritime PTZ takes maritime surveillance and observation to the next level with the incorporation of LRF (Laser Range Finder) laser measurement technology. This innovative addition enhances the platform’s capabilities by allowing precise distance measurements to be obtained, further improving situational awareness and target tracking accuracy.



Product Detail

Parameter

Dimension

Product Tags

Key Features:

  • Multi-Spectral Imaging: Equipped with a dual-spectral imaging system, this ptz combines visible light (2MP resolution,46xoptical zoom) and infrared (640×512, 1280×1024, up to 75mm lens) capabilities, laser range find up to 10000 meters.
  • By integrating LRF technology into the system, the Dual-Spectral Gyro-Stabilized Intelligent Maritime PTZ gains the ability to accurately determine the distance to objects within its field of view. This information is crucial for various maritime applications, including navigation, target identification, and even search and rescue operations. The LRF laser measurement technology operates in tandem with the dual-spectral imaging and gyroscopic stabilization features, creating a comprehensive solution that excels in challenging maritime environments.
  • Whether it’s detecting and tracking potential threats, assisting in maritime research, or aiding in precise maneuvering of vessels, the integration of LRF technology elevates the platform’s performance to new heights. This advancement not only enhances operational effectiveness but also ensures a higher level of safety and security across a wide range of maritime scenarios.

977多种配置

Integrate a variety of AI algorithms suitable for a variety of scenarios

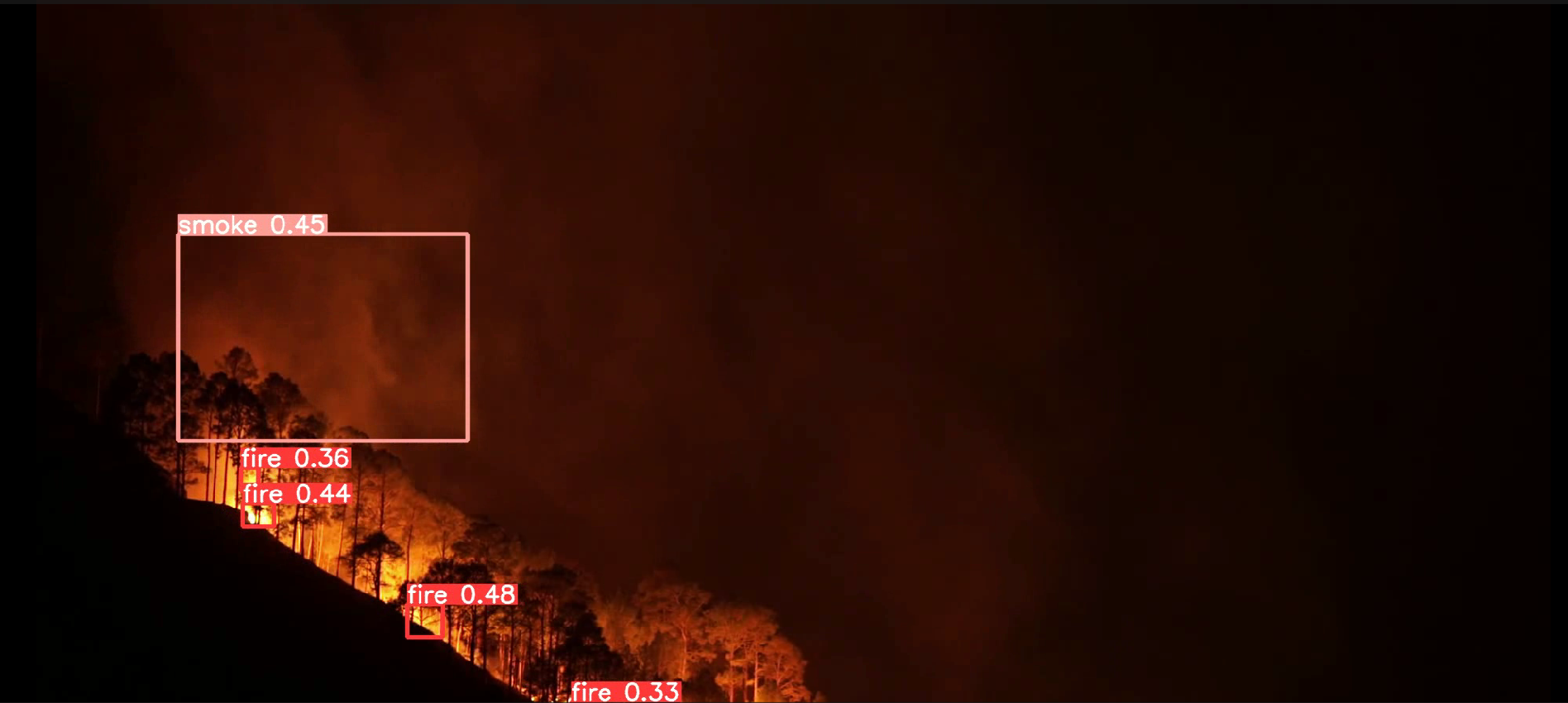

*Fire smoke detection

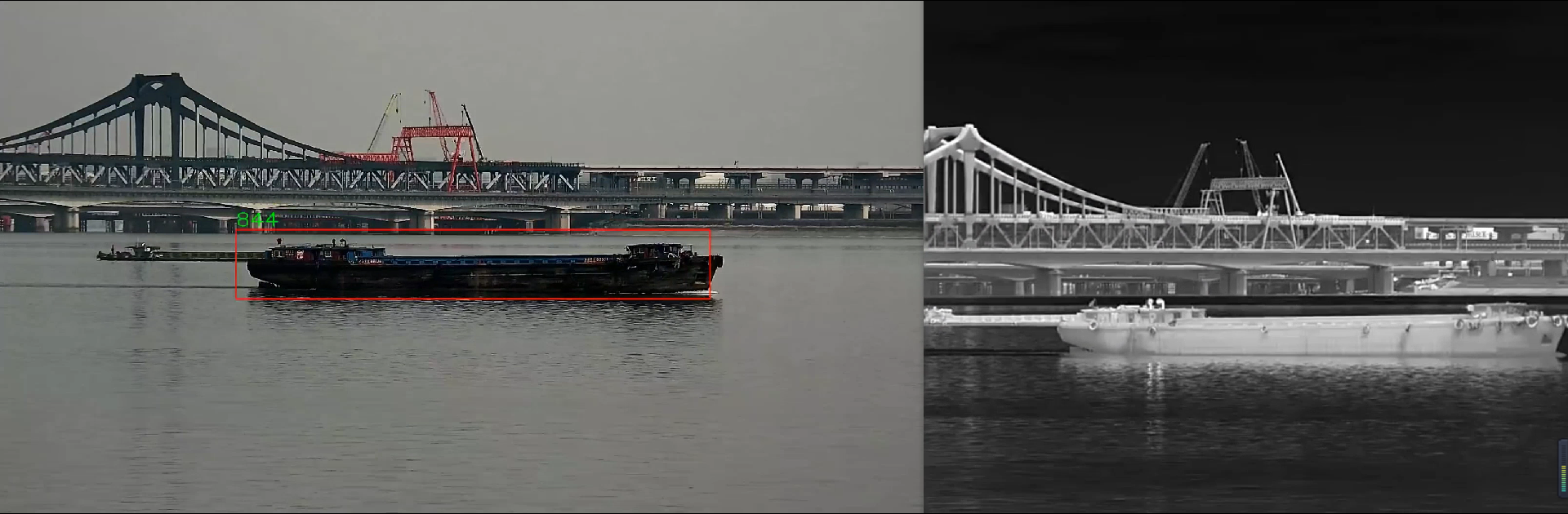

*Ship/boat detection and auto tracking
*Vessel tracking and identification

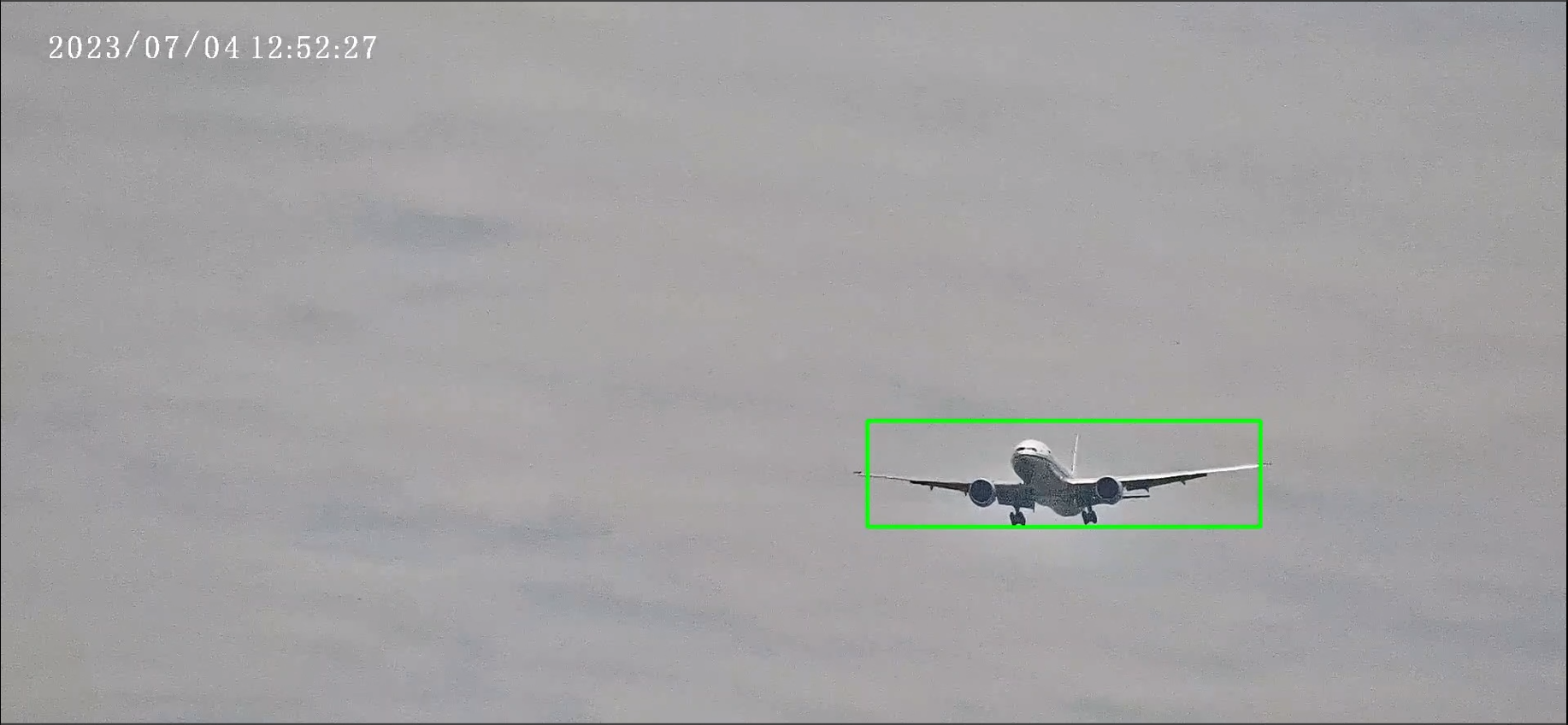

*Automatic tracking of aircraft and drones

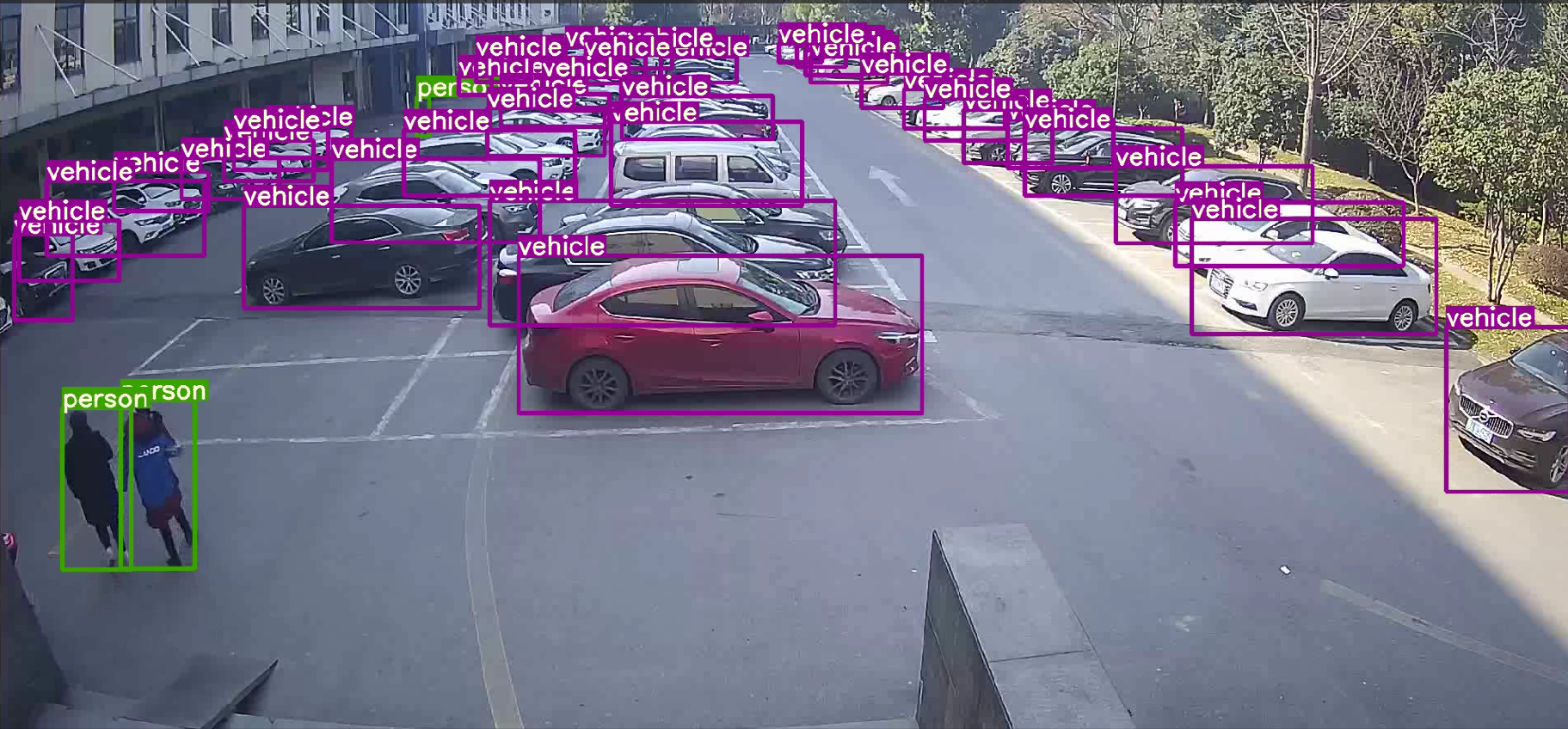

*person, vehicles and non-motor vehicles simultaneous recognition

船只识别跟踪飞机跟踪识别人机非跟踪识别烟火识别


  • Previous:
  • Next:

  • Model No: SOAR977-TH655A92R6
    Visible Camera
    Image Sensor
    1/2.8” Progressive Scan CMOS
    Resolution
    1920×1080P
    Optical Zoom
    6.1-561mm, 92×
    Electronic Shutter
    1/25-1/100000s
    Maximum Aperture Ratio
    F1.4-F4.7
    Frame
    25/30Frame/s
    Minimum illumination
    Color:0.0001 Lux @(F1.4,AGC ON);
    B/W:0.0005 Lux @(F1.4,AGC ON)
    WDR
    Support
    HLC
    Support
    Day/Night
    Support
    3D Noise Reduction
    Support
    Optical defog
    Support
    Thermal Imaging Configuration
    Image Sensor
    VOx Uncooled Infrared FPA
    Pixel Interval
    8~14μm
    Effective Pixels
    640*512/12μm
    Focal Length
    55mm
    Aperture
    F1.0
    Detection Distance
    5KM
    NETD
    ≤50mK@26℃, F#1.0
    Other Configuration
    Laser Ranging
    6KM
    Laser Ranging Type
    High performance
    Laser Ranging Accuracy
    1m
    PTZ
    Pan Range
    360° endless
    Tilt Range
    —50°~90°
    Preset speed/PAN
    0.05°/s~250°/s
    Preset speed/TILT
    0.05°/s~150°/s
    Max PAN manual speed
    100°/s
    Max Tilt manual speed
    100°/s
    Tracking speed synchronization
    Support
    Wiper
    Support
    Auto-sensing Wiper
    Support
    Presets
    255
    Preset Accuracy
    0.1°
    Patrol Scan
    16
    Frame Scan
    16
    Pattern Scan
    8
    3D Position
    Support
    Pitch axis gyrocope stabilization
    Support
    Yaw axis gyrocope stabilization
    Support
    Gyro Stabization Accuracy(Tilt)
    0.1°
    Remote Reboot
    Support
    Network
    Video Compression
    H.264/H.265
    WEB Access
    Support
    Triple streaming
    Support
    TCP
    Support
    IPV4
    Support
    UDP
    Support
    RTSP
    Support
    HTTP
    Support
    FTP
    Support
    ONVIF
    2.4.0
    Smart Configuration
    Thermal Imaging Fire Detection
    Support
    2 Meters Fire Detection Distance
    5KM (Size: 2 Meters )
    Thermal Imaging Fire Spot Detection Shielding Area
    Support
    Apple Peel Scanning Fire Point Shielding Area
    Support
    Cruise Scan Fire Point Shielding Area
    Support
    Combination Scanning Fire Point Shielding Area
    Support
    Fire Point Linkage Snapshot Upload
    Support
    Intrusion detection
    Support
    Crossing Detection
    Support
    Interface
    Power supply
    DC 24V±15%
    Ethernet
    RJ45 10Base-T/100Base-TX
    RS422
    Support
    CVBS
    Support
    Alarm Input
    1
    Alarm Output
    1
    General
    Power Consumption (Max)
    60W
    Protection Rate
    IP67
    Defog
    Support
    EMC
    GB/T 17626.5
    Working Temperature
    —40℃~70℃

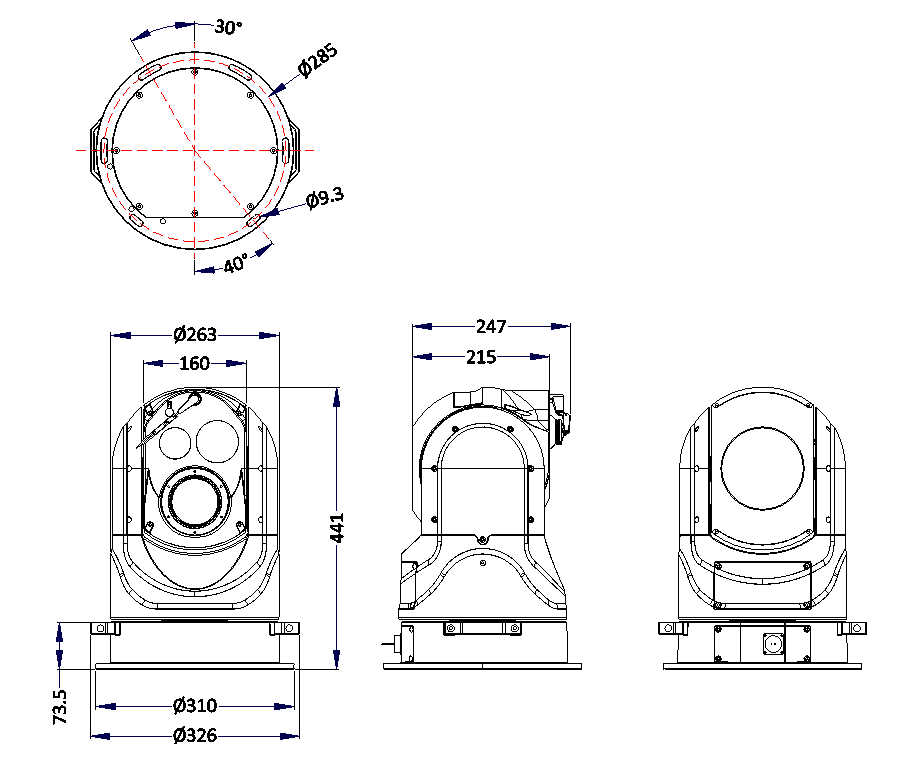

    Height
    446mm×326mm×247mm (includes wiper)
    Spirit Level
    Support
    Handle
    Support
    Weight
    18KG
