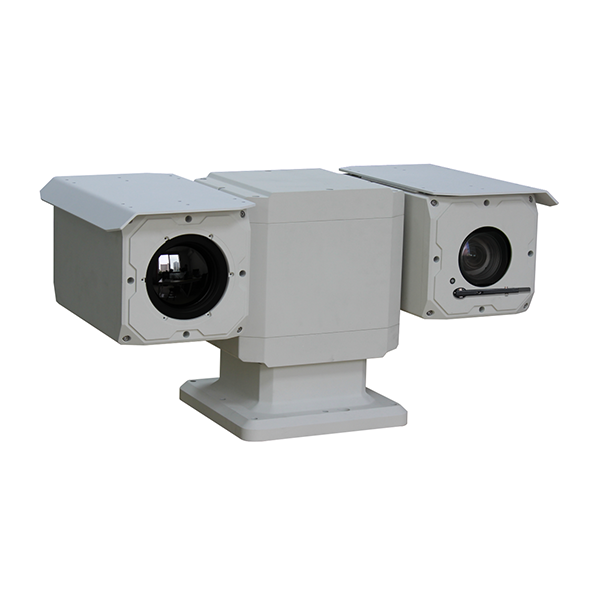

SOAR1050-TH series

Fire Smoke Detection Long Range Thermal PTZ

SOAR1050-TH12225B86R10

Fire Smoke Detection Long Range Thermal PTZ

The Long-Range Dual-Spectrum Intelligent Heavy-Duty PTZ is equipped with a built-in 5T computing power hardware processor and integrates various intelligent algorithms tailored to different application scenarios for optimized performance. The system utilizes high-precision harmonic mechanical transmission and is equipped with an electromagnetic brake system, allowing for dynamic power consumption adjustments.


Product Detail

Parameter

Dimension

Product Tags

The robust construction features strengthened aluminum and rugged IP67 housings. This design enables the system to endure the most severe weather conditions, making it highly reliable for applications such as perimeter security,homeland security, border monitoring, mobile/marine vessels, homeland defense, and coastal protection.

Feature
  • Multi sensor system: with optional thermal imager, visible camera;
  • Heavy duty,up to 70KG payload
  • Harmonic drive & Close-loop control system, high accuracy ±0.003°/s (pan), ±0.001°/s (tilt);
  • With optional thermal core:mid-wave cooled detector, or uncooled thermal core;
  • Built AI module, Support accurate fire detection,boat detection on both thermal image and visible camera channel;
  • Compatible with ONVIF, SDK available.

Integrate a variety of AI algorithms suitable for a variety of scenarios

*Fire smoke detection:visible light and thermal imaging combined judgment high accuracy
*Ship/boat detection and auto tracking:both visible and thermal channel
*Vessel tracking and identification of hull number:Large scene remote automatic search
*Automatic tracking of aircraft and drones:Stable tracking at night,suitable for airports protection,drone prevention
*Simultaneous recognition:person,vehicles,non-motor vehicles:visible light,thermal imaging combined judgement

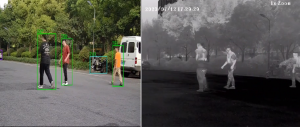

Boat Detection and TrackingVisible Camera and Thermal Imaging Simultaneous Recognition

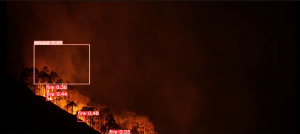

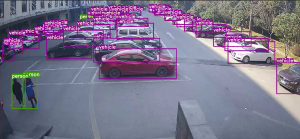

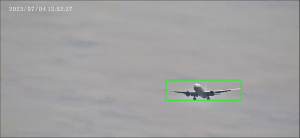

Human, vehicles and Non-motor Vehicles DetectionAircraft Detection and TrackingFire Smoke Detection


  • Previous:
  • Next:

  • Camera Module
    Image Sensor
    1/1.8” Progressive Scan CMOS
    Minimum Illumination
    Color: 0.0005 Lux @(F2.1,AGC ON);
    B/W: 0.0001 Lux @(F2.1,AGC ON)
    Shutter
    1/25s to 1/100,000s; Supports delayed shutter
    Aperture
    PIRIS
    Day/Night Switch
    IR cut filter
    Lens
    Focal Length
    10-860 mm,86X Optical Zoom
    Aperture Range
    F2.1-F11.2
    Horizontal Field of View
    38.4-0.34° (wide-tele)
    Working Distance
    100-2000mm (wide-tele)
    Image(Maximum Resolution:2560*1440)
    Zoom Speed
    Approximately 9s (optical lens, wide-tele)
    Main Stream
    50Hz: 25fps (2560*1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2688*1520, 1920 × 1080, 1280 × 960, 1280 × 720)
    Image Settings
    Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser
    BLC
    Support
    Exposure Mode
    AE / Aperture Priority / Shutter Priority / Manual Exposure
    Focus Mode
    Auto / One step / Manual/ Semi-Auto
    Area Exposure / Focus
    Support
    Optical Defog
    Support
    Image Stabilization
    Support
    Day/Night Switch
    Automatic, manual, timing, alarm trigger
    3D Noise Reduction
    Support
    Thermal Imager
    Detector Type
    Vox Uncooled Infrared FPA
    Pixel Resolution
    1280*1024
    Pixel Pitch
    12μm
    Response Spectra
    8~14μm
    NETD
    ≤50mK
    Digital Zoom
    1.0~8.0× Continuing Zooming (step 0.1), zoom in any area
    Continuous Zooming
    25-225mm
    Other Configuration
    Laser Ranging
    10KM
    Laser Ranging Type
    High Performance
    Laser Ranging Accuracy
    1m
    PTZ
    Movement Range (Pan)
    360°
    Movement Range (Tilt)
    -90° to 90° (auto flip)
    Pan Speed
    configurable from 0.05°~150°/s
    Tilt Speed
    configurable from 0.05°~100°/s
    Proportional Zoom
    yes
    Motor drive
    Harmonic gear drive
    Positioning Accuracy
    Pan 0.003°, tilt 0.001°
    Closed Loop Feedback Control
    Support
    Remote upgrade
    Support
    Remote Reboot
    Support
    Gyroscope stabilization
    2 axis (optional )
    Presets
    256
    Patrol Scan
    8 patrols, up to 32 presets for each patrol
    Pattern Scan
    4 pattern scans, record time over 10 minutes for each scan
    Power-off Memory
    yes
    Park Action
    preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
    3D Positioning
    yes
    PTZ Status Display
    yes
    Preset Freezing
    yes
    Scheduled Task
    preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
    Interface
    Communication Interface
    1 RJ45 10 M/100 M Ethernet Interface
    Alarm Input
    1 alarm input
    Alarm Output
    1 alarm output
    CVBS
    1 channel for thermal imager
    Audio Output
    1 audio output, line level, impedance: 600 Ω
    RS-485
    Pelco-D
    Smart Features
    Smart Detection
    Area Intrusion Detection,
    Smart Event
    Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, unattended baggage detection, object removal detection, Intrusion Detection
    fire detection
    Support
    Auto tracking
    Vehicle /non-vehicle/human/Animal detection and auto tracking
    Perimeter Detection
    support
    Network
    Protocols
    ONVIF2.4.3
    SDK
    Support
    General
    Power
    DC 48V±10%
    Operating Conditions
    Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
    Wiper
    Yes. Rain-sensing auto control
    Protection
    IP67 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

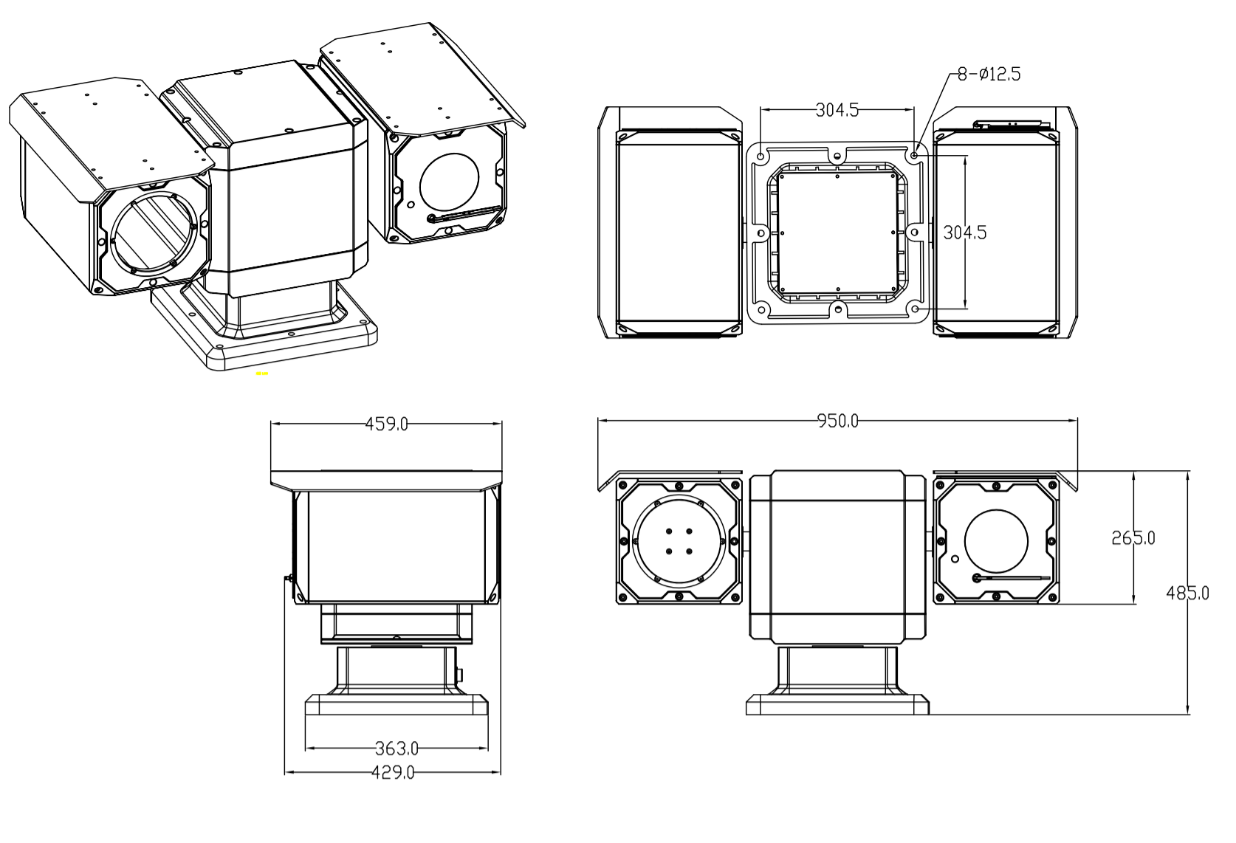

    Dimension of Heavy Duty Long Range PTZ
