SOAR977-TH675A52

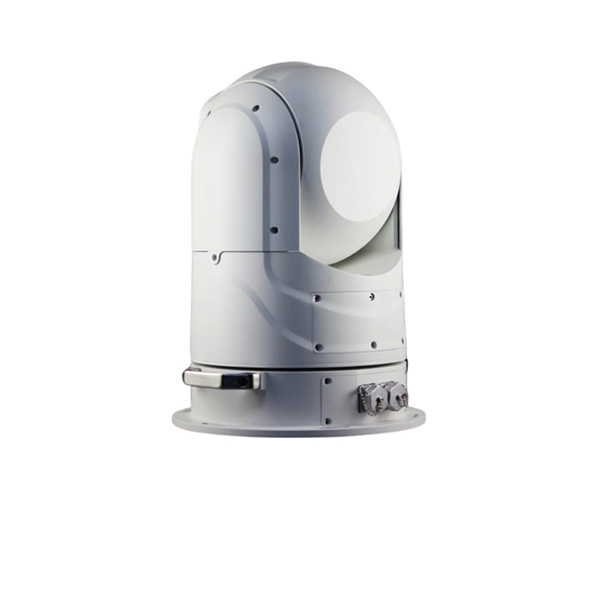

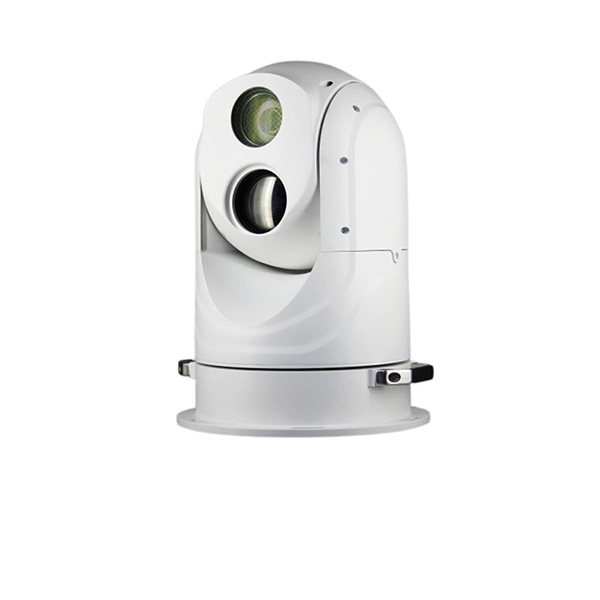

Gyroscope Stabilisation 2 Axis IR Thermal Imaging Dual Sensor Marine PTZ Camera

SOAR977-TH675A52

Gyroscope Stabilisation 2 Axis IR Thermal Imaging Dual Sensor Marine PTZ Camera

- gyroscope stabilization – long range – Multi sensor options – Optional laser range finder- optional laser illuminator – IP 67



Product Detail

Parameter

Dimension

Product Tags

Model No.: SOAR977SOAR977 gyroscope stabilization long range PTZ includes an optical camera and a thermal imager in one unit. Thermal imagers provide different viewing characteristics from optical cameras, and detect thermal radiation from the target. The greater the difference between the target temperature and the surrounding area, the brighter the object will be.The resolution of the thermal imager is 640 x 480, and a 75mm thermal imager is used. The 330mm zoom lens, defog optical camera can perform daytime inspections about 7 miles away.Uses a cost-effective solution to present an affordable 2 axis image stabilization system.

It is a compact photoelectric control system, built-in gyroscope module, servo motor system, high-definition optical lens, adjustable focus long-distance thermal imaging equipment, optimized for deployment on all types of ships, initially for naval ships Designed for boat applications.

Key Features

● Dual Payload system:

starlight optical Camera with 1/1.8″ Cmos sensor, 317mm lens, 52x Zoom;

High Resolution Thermal Imaging Sensor640×480Thermal Resolution with 75mm Lens;

● 360° omnidirectional high-speed PTZ; ±90° Tilt range;

● Built-in heater/fan, allows the withstand the harshest climates;

● Gyro Stabilization, 2 axis

● Optional LRF;

● Marine rated design,

● Onvif Support;

● Waterproof index: Ip67

Hot Tags: gyroscope stabilisation 2 axis ir thermal imaging dual sensor marine ptz camera, China, manufacturers, factory, customized, Starlight IR Speed Dome, Police Vehicle Mounted Ptz, Gyro Stabilization Rugged PTZ, Thermal PTZ, 2MP Optical Zoom Camera Module, Illumination IR Speed Dome

  • Previous:
  • Next:

  • Product ModelSOAR977-TH675A52
    Compatible Application
    High Altitude OutlookSupport
    coast surveillanceSupport
    mobile surveillanceSupport
    vessel/boatSupport
    Optical camera
    Image Sensor1/1.8
    Resolution1920×1080P
    Optical Zoom6.1-317mm,52×
    Electronic Shutter1/25-1/100000s
    Maximum Aperture RatioF1.4-F4.7
    Frame25/30Frame/s
    Minimum illumination0.0001Lux
    Digital Zoom16×
    WDRSupport
    HLCSupport
    Day/NightSupport
    3D Noise ReductionSupport
    Optical defogSupport
    EISSupport
    Thermal Imaging Configuration
    Image SensorUncooled detector
    Pixel Interval12um
    Effective Pixels640×512P
    Focal Length75mm
    ApertureF1.0
    Detection Distance8KM
    Other Configuration
    Laser illuminator
    Laser Ranging
    Laser Ranging Type
    Laser Ranging Accuracy
    PTZ Configuration
    Pan Range360° endless
    Tilt Range—60°~90°
    Preset speed/PAN300°/s
    Preset speed/TILT200°/s
    Max PAN manual speed100°/s
    Max Tilt manual speed100°/s
    Tracking speed synchronizationSupport
    WiperSupport
    Auto-sensing WiperSupport
    Presets255
    Preset Accuracy0.1°
    Patrol Scan16
    Frame Scan16
    Pattern Scan8
    3D PositionSupport
    Pitch axis gyrocope stabilizationSupport
    Yaw axis gyrocope stabilizationSupport
    Gyro Stabization Accuracy(Tilt)0.1°
    Remote RebootSupport
    Network
    Video Compressionh.264/265
    WEB AccessSupport
    Triple streamingSupport
    TCPSupport
    IPV4Support
    UDPSupport
    RTSPSupport
    HTTPSupport
    FTPSupport
    ONVIF2.4.0
    Interface
    Power supplyDC 24V±15%
    EthernetRJ45 10Base-T/100Base-TX
    RS422
    CVBS
    Alarm Input1
    Alarm Output1
    Audio Input
    Audio Output
    General
    PAN/TILT Power consumption17.5W
    Power Consumption (Max)60W
    Protection RateIP67
    Anti-salty
    Defog
    Anti Vabration5m2
    EMCGB/T 17626.5
    Working Temperature—40℃~70℃
    Height446mm
    Width326mm
    Length247mm
    Spirit Level
    Handle
    Weight15KG
